TUF-4850S Digital Turbidity sensor

Short Description:

The digital turbidity sensor, based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.
The product is widely used in sewage plant, water plant, water station, surface water, farming, industry and other fields.


Product Detail

Product Tags

Product Specifications

Specifications Details
Size Diameter 60mm* Length 256mm
Weight 1.65 KG
Main Materials Main Body:SUS316L (Ordinary Version),Titanium Alloy (Seawater Version)

Upper and Lower Cover:PVC

Cable: PVC

Waterproof Rate IP68/NEMA6P
Measurement Range 0.01-100 NTU 、0.01-4000 NTU
Indication Resolution Less than ± 2% of the measured value, or ± 0.1 NTU Maximax criterion
Pressure Range ≤0.4Mpa
Flow velocity ≤2.5m/s、8.2ft/s
Storage Temperature -15~65℃
Environment Temperature 0~45℃
Calibration Sample Calibration, Slope Calibration
Cable Length Standard 10-Meter Cable, Max Length: 100 Meters
Warranty Period 1 Year
High Voltage Baffle Aviation Connector, Cable Connector

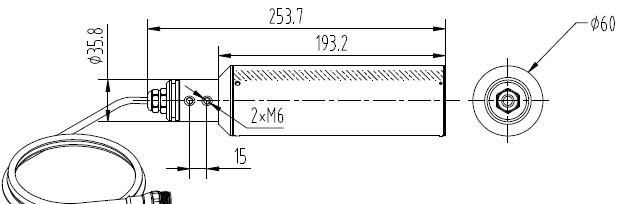

External Dimension:

JIRS-TU-800  Digital Turbidity sensor4

Table 1 Specifications of Turbidity Sensor
